Add SVN work models

Description

This page is used to add an already existing SVN work model to the project.
The SVN repository is either hosted on the Constellation server itself, or on an external SVN server.

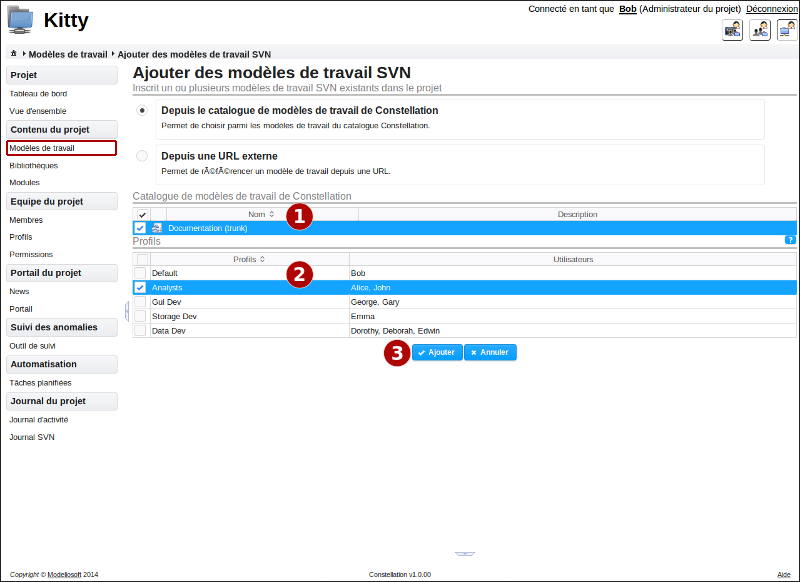

From the Constellation work model catalogue

From Constellation

  1. Choose one or several SVN work model(s).
  2. Choose the profile(s) where the work model(s) must be visible. If no profiles are selected, no users connected to the project in Modelio will have access to this work model. This configuration can be carried out later via the configuration of the content of the profiles.
  3. Confirm the creation in order to return to the list of the project’s work models.

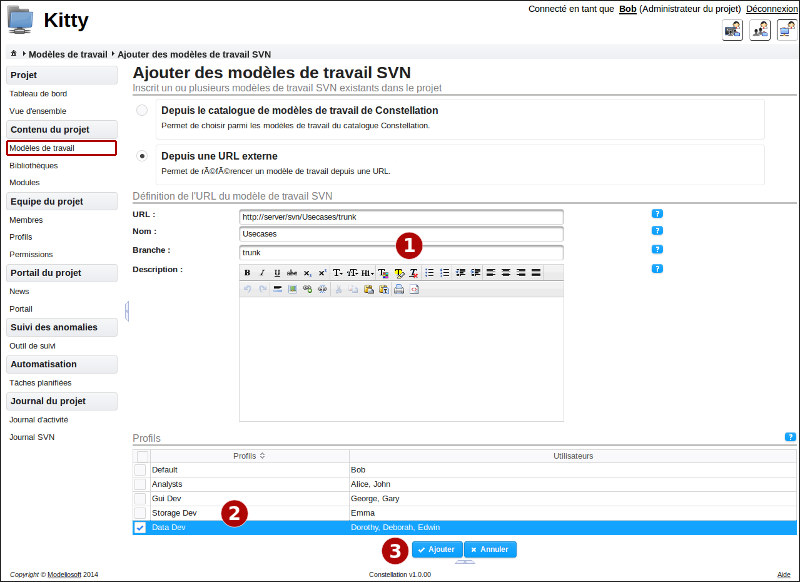

From an external URL

From external URL

  1. Enter the URL, name and branch of the SVN work model, and a description to display in Constellation.
  2. Choose the profile(s) where the work model must be visible. If no profiles are selected, no users connected to the project in Modelio will have access to this work model. This configuration can be carried out later via the configuration of the content of the profiles.
  3. Confirm the creation in order to return to the list of the project’s work models.

Particular rights required

The work model creation rights are required in order to create shared work models.
