Detailed information on a work model¶

Description¶

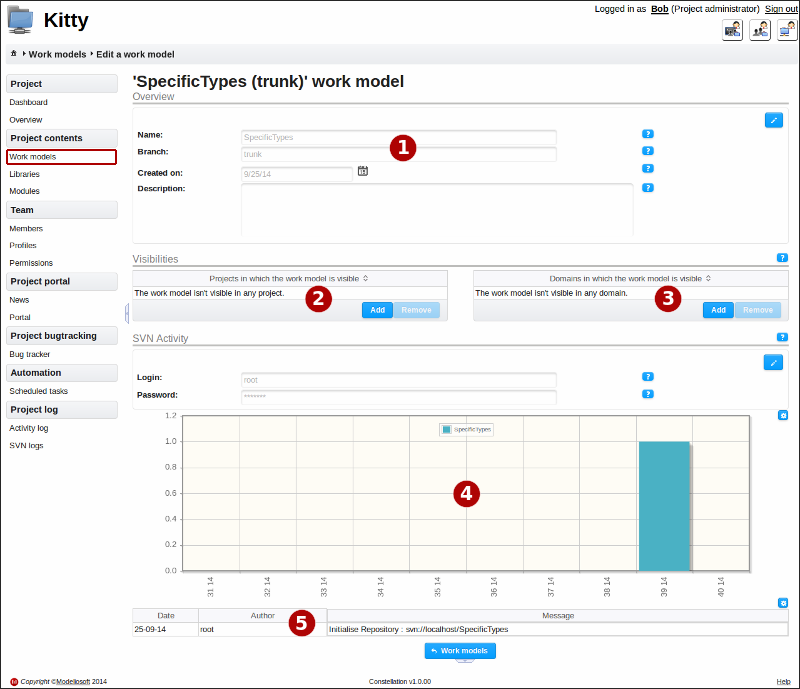

This page displays detailed information on a local or SVN work model on the Constellation server.

A work model can only be modified if the project owns it. If this is not the case, then you will have to go through the domain administrator or the server administrator. See the Constellation roles guide.

1. Administrative information on the work model, name, description…
2. The list of the other projects where this work model is explicitly available. Implicitly, it is of course visible in the current project.
3. The list of the other domains where this work model is explicitly available.
4. A graph presenting the number of commits on this SVN fragment over the past few weeks.
5. The list of the latest commits on this SVN fragment.

Note: In the case of an SVN work model, an account must be configured for Constellation in the SVN repository, in order to be able to display statistics. If this is not correctly defined, an error message will appear, indicating this connection problem.

Particular rights required¶

The manage work models right is required in order to edit a fragment.
