Project overview¶

Description¶

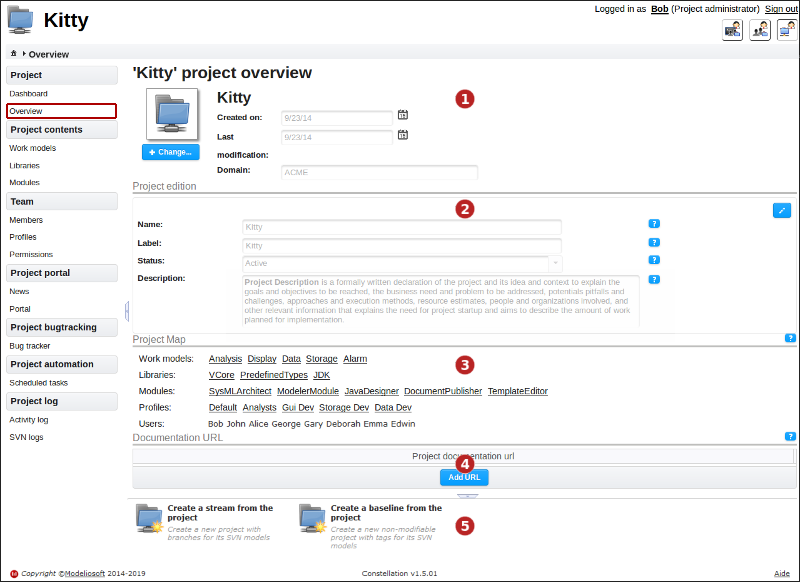

The project overview allows you to modify the descriptive information of the project.

1. Some general information, such as the date of creation and the domain of the project. On the left, “Change …” allows to change the image associated with the project.
2. It is possible here to change the technical name of the project (which can not contain certain characters, it will be the name of the directory created in the Modelio workspace), its label (which is always displayed instead of the technical name if it is defined) , its status and description.
3. The project map is a summary of the content of the project classified by type: library, module, user …
4. The documentation URLs are intended to be displayed in Modelio when selecting the project. In the case of using web tools external to Constellation (a forge, an bug tracking tool …), it is advisable to add them here so that each member who connects to the project can directly access these links.
5. The ‘Create a stream from the project’ and ‘Create a baseline from the project’ buttons allows to create a copy of the project.

Particular rights required¶

You must have the “Project configuration” right in order to run all the operations accessible via this page.
